OSCAR Offline Spectral Covariance-Aware Rotation
for 2-bit KV Cache Quantization

Zhongzhu Zhou^*1,2, Donglin Zhuang^*1,2, Jisen Li^1,3, Ziyan Chen²
Shuaiwen Leon Song¹, Ben Athiwaratkun¹, Xiaoxia Wu^†1

¹Together AI ²University of Sydney ³University of Illinois Urbana-Champaign

^*Equal contribution. ^†Corresponding author.

INT2 KV-cache serving for long-context reasoning LLMs: attention-aware fixed rotations, BF16 sink/recent protection, and SGLang-ready kernels at 2.28 effective bits per KV element. On Qwen3-4B-Thinking, Qwen3-8B, Qwen3-32B, and GLM-4.7-FP8, the mean gap to BF16 is 3.78, 1.42, −0.02, and +0.27 points respectively, while reducing KV memory by ~8× and increasing large-batch throughput by up to ~7×.

GitHub Repo Read Paper

RotationZoo

Quantization Pipeline

Offline calibration -> online INT2 serving

→

C_K = Q^⊤Q

C_S = V^⊤S^⊤SV

Run a calibration pass. Dump activations and compute attention-aware covariance targets per layer/head.

U_Q

H_Had

P_br

R_K, R_V

Eigendecompose covariances, compose with Hadamard mixing and bit-reversal permutation, then fit token-wise clip thresholds.

BF16 sink

INT2 history

BF16 recent

Logical cache: [1, S₀] ‖ [S₀+1, t−W] ‖ [t−W+1, t]. New tokens land in recent; oldest recent demotes to INT2.

clip → INT2 → pack

4 × 2-bit values per byte

k⁺ = Q₂⁺(clip(k·R_K, τ)) — token-wise affine asymmetric INT2: each 2-bit code selects one of four reconstruction levels under the token/group scale and zero point.

BF16 kernel sink + recent

INT2 kernel unpack · dequant · accumulate

⊕ merge

Attention output

Two first-stage kernels over BF16 and INT2 segments; online softmax merge produces the same result as full-precision attention.

Calibrate

2.28 BPE

~8× KV memory

~7× throughput

128K reasoning traces

Where INT2 KV Quantization Fails

KV activations have severe channel-wise outliers. At INT2, only four quantization levels exist — outliers dominate the scale and many non-outlier entries map to the same code. Hadamard rotations reduce coordinate spikes, but they do not use the query/value statistics that determine attention error.

⚡

Outlier-dominated scale

A few extreme channels set the min-max range; most values collapse into useless INT2 bins.

↻

Rotation target changes the error

Random or Hadamard rotations mix coordinates; they do not choose directions from Q^⊤Q or score-weighted value covariance.

◎

Attention consumes correlations

Keys affect logits through QK^⊤; values affect the weighted sum after softmax. Raw tensor MSE is therefore an indirect objective.

The OSCAR Recipe

OSCAR separates calibration from serving: fixed rotations and clip thresholds are computed offline, then the online path stores the long-history KV cache in INT2 while preserving a small BF16 window.

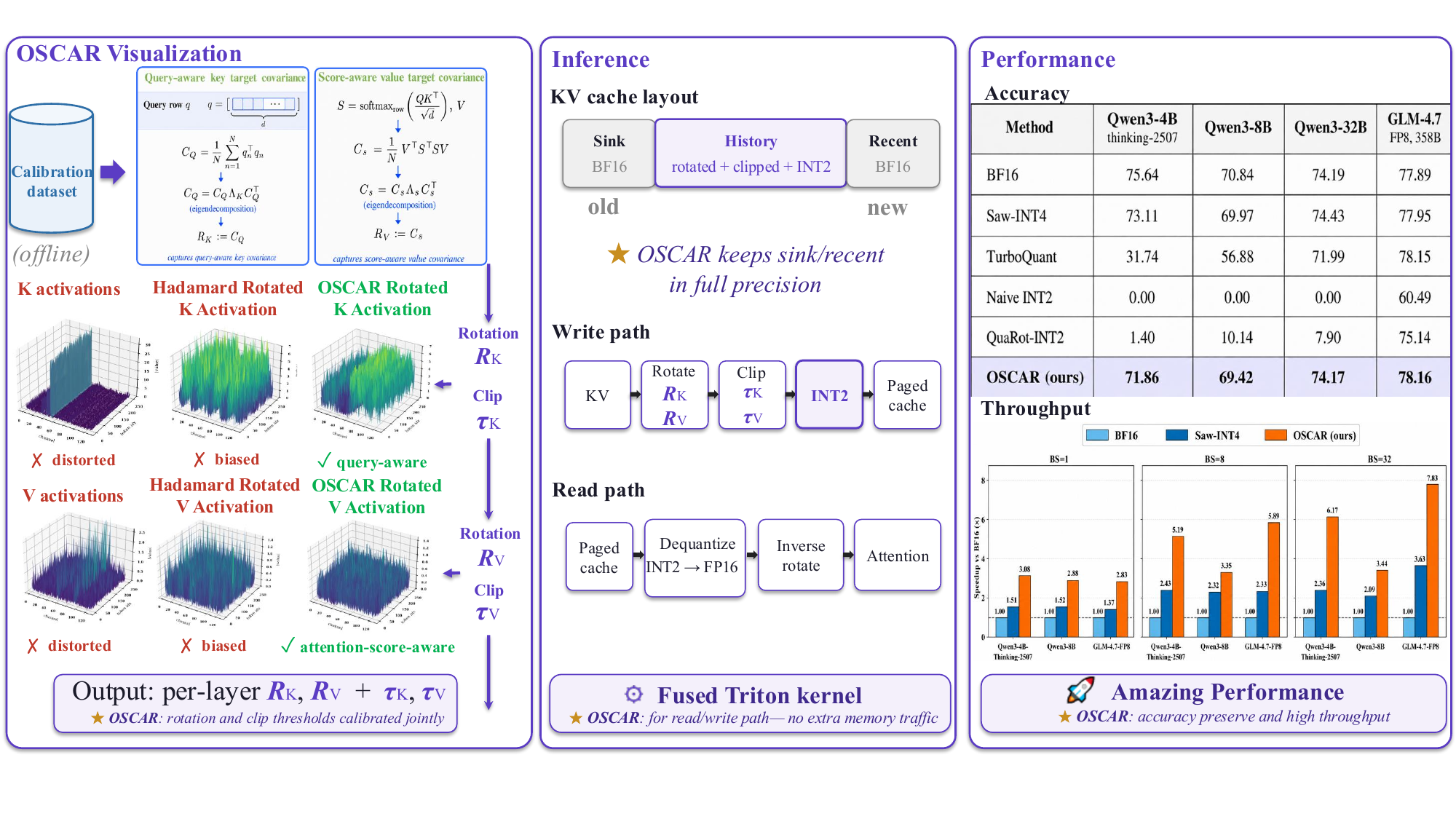

OSCAR pipeline overview: offline calibration and online INT2 serving — **OSCAR pipeline overview.** *Offline:* estimate attention-aware key/value covariances, build fixed rotations (`R = U · H_Had · P_br`), and fit clipping thresholds — Hadamard mixing flattens raw outlier peaks while OSCAR rotations align quantization with attention. *Online:* keep sink and recent tokens in BF16; apply rotate–clip–INT2 to history KV inside a paged SGLang cache. Right panels: main-table accuracy and serving throughput under the same 2.28-BPE cache layout.

Attention-aware rotations

Offline calibration estimates C_K = Q^⊤Q for keys and C_S = V^⊤S^⊤SV for values, then builds R = U · H_Had · P_br.

BF16 sink & recent

Protect attention sinks and a sliding recent window in full precision while the long history lives in INT2.

SGLang INT2 serving

Fused Triton kernels rotate, clip, quantize, and pack K/V rows (4×2-bit values per byte); the decode path is compatible with SGLang paged attention.

Rotation Target Changes Accuracy

A rotation that minimizes raw cache reconstruction can still distort the directions used by attention. OSCAR aligns rotations to Q^⊤Q (keys) and V^⊤S^⊤SV (values) rather than raw cache reconstruction.

The ablation changes the rotation target or removes one factor of R = U · H_Had · P_br; the INT2 layout and BF16 windows stay fixed.

Setup. Qwen3-8B, same INT2 KV budget (sink 64 + recent 256, calibration-derived clip). Each number is the unweighted mean pass@1 accuracy (%) over five benchmarks: GPQA, HumanEval, LiveCodeBench v6, AIME 2025, and MATH-500 (3 seeds in the paper).

Full OSCAR 70.01 Attention-aware U · Hadamard · bit-reversal

Tensor-reconstruction target 31.12 U from K^⊤K / V^⊤V instead

w/o attention-aware U 32.82 Hadamard + bit-reversal only (QuaRot-style)

No rotation 4.23 Clip + sink/recent only

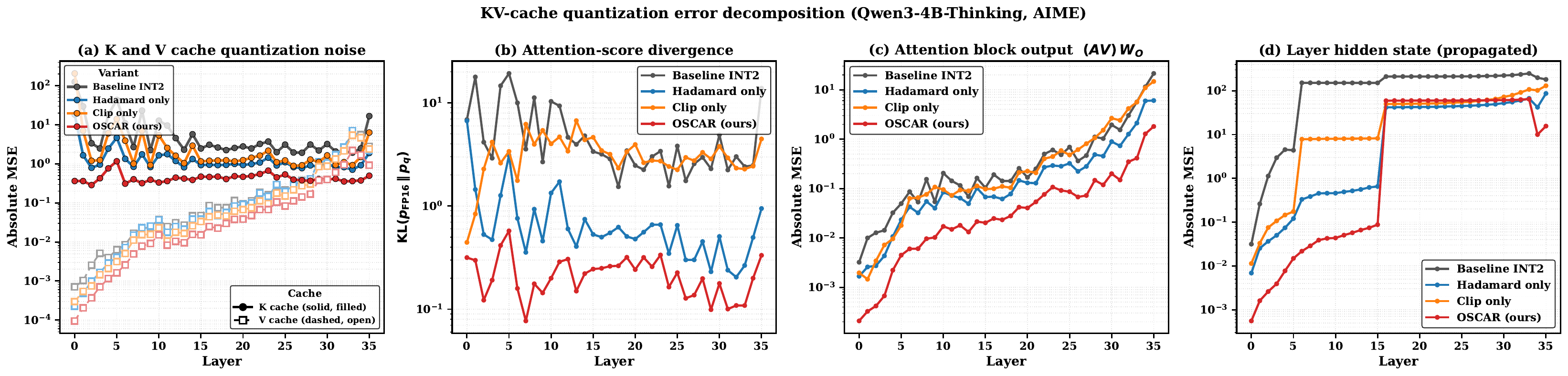

Quantization error at every pipeline stage — OSCAR limits quantization error at every stage

Qwen3-4B-Thinking-2507, AIME

(a) Relative MSE in quantized K / V caches (keys solid, values dashed).

(b) KL(p_FP16 ∥ p_q) between FP16 and quantized attention-score distributions.

(c) Relative MSE at the attention-block output (post-W_O).

(d) Relative MSE in propagated hidden states across layers.

Naive INT2, Hadamard-only, and clip-only baselines diverge in (b)–(d); full OSCAR stays closest to FP16.

Rotation intuition

Why `R = U · H_Had · P_br` is ordered this way

OSCAR separates the three factors: U exposes attention-importance directions, Hadamard equalizes the diagonal importance metric and spreads token outliers, and bit-reversal balances high-importance directions across quantization groups.

Read intuition page

Production Serving Path

OSCAR implements an SGLang INT2 KV-cache mode for paged attention and prefix caching.

Fused rotate–clip–quantize–pack during prefill and decode demotion
Value rotation absorbed into projection weights for compute savings
FlashAttention-3 prefill + Triton INT2 decode hybrid mode
Compatible with SGLang paged attention and prefix cache

Accuracy & Efficiency

Evaluated on reasoning models with up to 32K-token traces across five reasoning and coding benchmarks. RULER-NIAH is evaluated up to 128K on Qwen3 models.

Qwen3-4B-Thinking

3.78

BF16 gap (pts) @ 2.28 BPE

Qwen3-8B

1.42

BF16 gap (pts) @ 2.28 BPE

Qwen3-32B & GLM-4.7

≈ BF16

−0.02 / +0.27 mean gap

vs TurboQuant

+40.1

mean score on Qwen3-4B (2.28 vs 3.25 BPE)

Main accuracy on four model configurations and five benchmarks (32K generation; μ±σ over 5 seeds unless noted). BPE = effective bits per KV element @ 128K context. Drop = gap to BF16 mean.

Model	Method	BPE	GPQA	HumanE	LCB v6	AIME25	MATH500	Mean	Drop
Qwen3-4B-Thinking	BF16	16.00	67.27	94.05	48.66	74.67	93.55	75.64	—
	Saw-INT4	4.25	66.37	89.78	46.20	70.00	93.19	73.11	−2.53
	TurboQuant*	3.25	41.41	31.83	0.58	16.67	68.20	31.74	−43.90
	QuaRot-INT2	2.25	0.34	0.98	0.00	0.00	5.67	1.40	−74.24
	OSCAR	2.28	64.95	92.24	45.38	64.00	92.75	71.86	−3.78
Qwen3-8B	BF16	16.00	56.67	85.95	49.01	70.00	92.59	70.84	—
	Saw-INT4	4.25	54.85	86.44	47.95	68.00	92.63	69.97	−0.87
	TurboQuant*	3.25	55.05	74.63	21.05	46.67	87.00	56.88	−13.96
	QuaRot-INT2	2.25	14.98	9.80	0.58	2.22	23.13	10.14	−60.70
	OSCAR	2.28	55.05	87.88	46.32	66.67	92.22	69.42	−1.42
Qwen3-32B	BF16	16.00	58.49	91.19	59.06	68.67	93.55	74.19	—
	TurboQuant*	3.25	58.69	88.41	55.56	66.67	90.60	71.99	−2.20
	OSCAR	2.28	60.40	90.12	53.57	74.00	92.75	74.17	−0.02
GLM-4.7-FP8	BF16	16.00	73.23	91.46	49.12	80.00	95.66	77.89	—
	TurboQuant*	3.25	66.67	90.24	58.48	80.00	95.39	78.15	+0.26
	OSCAR	2.28	73.57	91.06	52.63	78.89	94.66	78.16	+0.27

Notes. For a fair comparison at a comparable bit budget, TurboQuant results use vLLM's implementation modified so that all layers are quantized (no mixed precision); the original TurboQuant keeps the first, last, and selected middle layers in full precision. We run it in its K3V3 configuration (3-bit K, 3-bit V) to land near the OSCAR bit budget. TurboQuant entries are single-run results because its vLLM path is too slow for repeated 32K-context evaluations under our compute budget.

QuaRot-INT2 is the standard 2-bit KV-quant recipe (data-free Hadamard rotation per layer). Saw-INT4 is an INT4 reference for context. Naive INT2 is per-token symmetric INT2 with no rotation.

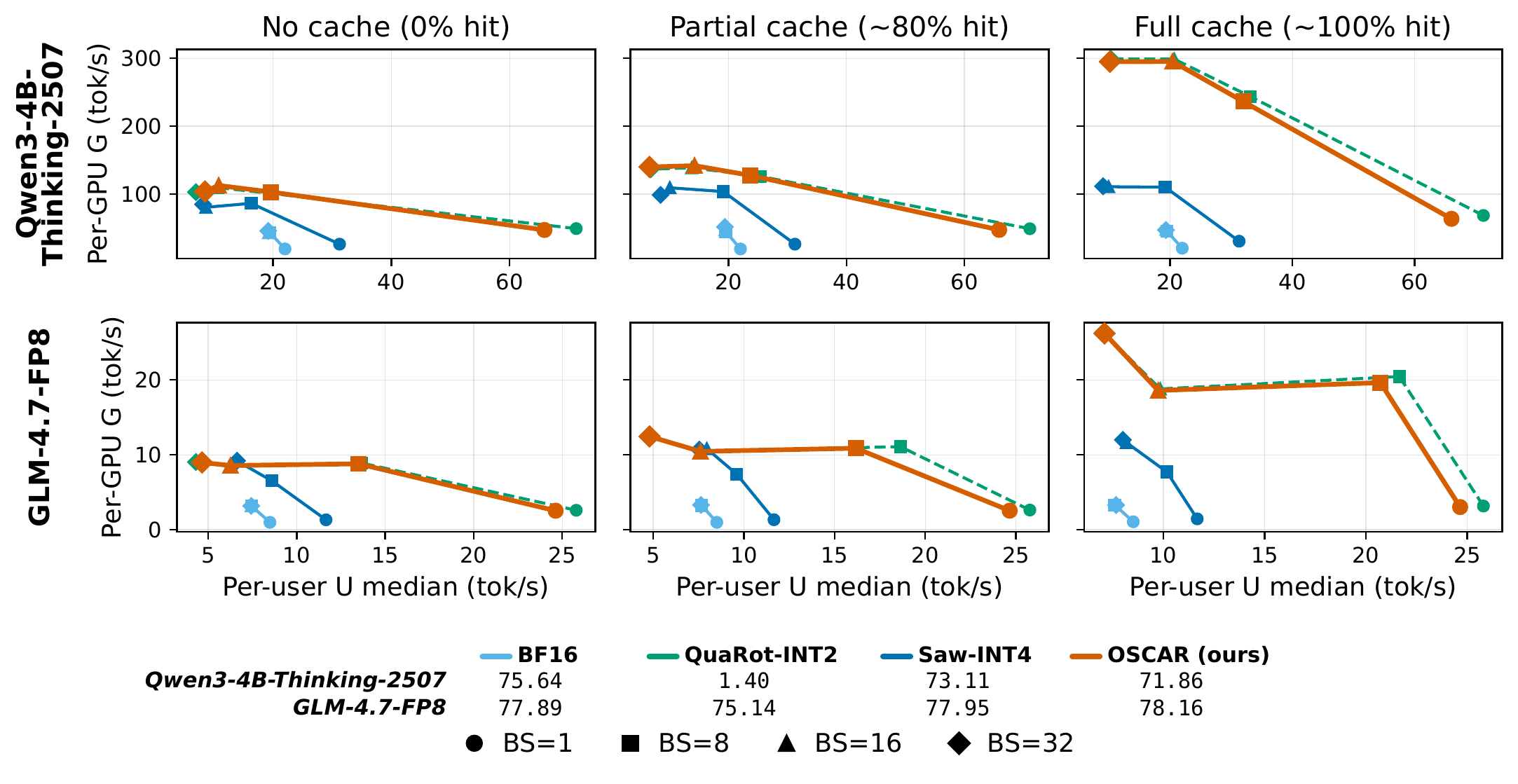

Effect of prefix-cache hit ratio on end-to-end serving throughput

Effect of prefix-cache hit ratio on end-to-end serving throughput (100k ISL, 1K OSL). Each subplot shows median per-user throughput \(U\) (x-axis, tok/s) versus mean per-GPU throughput \(G\) (y-axis, tok/s), with markers denoting batch sizes \(\mathrm{BS} \in \{1,8,16,32\}\). Rows correspond to Qwen3-4B-Thinking-2507 and GLM-4.7-FP8. Columns correspond to radix cache disabled, radix cache enabled during normal execution, and immediate replay after warmup (near-100% hit ratio).

OSCAR vs TurboQuant

TurboQuant OSCAR

Target Generic online vector quantization Attention-aware 2-bit KV serving

Rotation Data-oblivious random Covariance-aware offline

Effective BPE 3.25 2.28

Protection — BF16 sink + recent

System Quantizer backend SGLang cache layout + Triton kernels

TurboQuant and OSCAR both use rotations and low-bit codes, but their measured objectives differ: TurboQuant reports a vector-quantizer backend; OSCAR reports an SGLang KV-cache layout and decode path.

Are OSCAR and TurboQuant compatible?

A hybrid is possible as a new experiment, but it is not the code path evaluated here. TurboQuant exposes an online quantizer; OSCAR fixes the KV layout, BF16 windows, and SGLang decode kernels around its rotation target.

TurboQuant

Online vector quantizer
Data-oblivious random rotation
Optimizes MSE / inner-product distortion
Rate–distortion analysis for the quantizer backend
~3.25 BPE in our fair KV comparison (no mixed-precision exemptions)

OSCAR

Attention-aware 2-bit KV-cache serving method
Offline covariance-aware rotations (Q^⊤Q, V^⊤S^⊤SV)
BF16 sink + recent protection + INT2 history layout
SGLang / Triton path with paged KV
2.28 BPE; BF16 mean gap reported in the table above

Possible hybrid to test: One could explore TurboQuant-style codebooks after OSCAR's attention-aware rotation, or test OSCAR's rotation targets inside a TurboQuant-like backend.

Why this is not a one-line change: Swapping one method for the other would require new kernels, revised bit accounting (effective BPE), and new accuracy/throughput measurements for the resulting cache layout.

In the current implementations, they are not interchangeable modules. TurboQuant targets generic vector quantization; OSCAR fixes the rotation target, BF16 windows, INT2 cache layout, and SGLang kernels as one serving path.

Citation

Please cite the arXiv version of OSCAR using the BibTeX entry below.

@misc{zhou2026oscarofflinespectralcovarianceaware,
  title         = {OSCAR: Offline Spectral Covariance-Aware Rotation for 2-bit KV Cache Quantization},
  author        = {Zhongzhu Zhou and Donglin Zhuang and Jisen Li and Ziyan Chen and Shuaiwen Leon Song and Ben Athiwaratkun and Xiaoxia Wu},
  year          = {2026},
  eprint        = {2605.17757},
  archivePrefix = {arXiv},
  primaryClass  = {cs.LG},
  url           = {https://arxiv.org/abs/2605.17757},
}

Open arXiv

OSCAR Offline Spectral Covariance-Aware Rotationfor 2-bit KV Cache Quantization
